Structural Steel Pipe

Structural Steel Pipe. A wide range of applications rely on structural steel pipe for strength and stability. POSCO steel supply welded and seamless pipe for structural applications to customers in all industries. As a leading steel pipe supplier, POSCO steel offers a large inventory of pipe and tubing sizes from 1/8” NPS to 48” NPS.

Classification :

Seamless Pipe

+8613396424121

sales05@wktr-steel.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product introduction

In general, structural pipe is a type of steel construction pipe that meets certain standards of chemical composition and mechanical properties. This pipe can be used for a wide variety of structural applications and there are variety of types of structural pipe available. Common types of structural pipe include:Seamless Steel Pipe: Seamless steel structural pipe is a durable pipe product that is commonly used for dock piling, pipe piling, caissons, and bollards.ERW Steel Pipe: This structural pipe is typically known to the construction industry as high quality line pipe and it is commonly used by the oil and utility companies. This steel pipe can be used for sign pole, column, dock, and tunnel construction.Spiral Steel Pipe: This is an economical and durable type of structural pipe that offers long lasting durability for things like road casing, piling and trenches.DSAW Carbon Steel Pipe: This structural pipe is welded on both the OD and the ID. It is available in many different grades and is used for road casing, road boring, culverts, and more.Fence Pipe: This is a type of structural pipe that is becoming popular for building fences because of its high durability and strength. This structural pipe is used for enclosing parks, parking lots, and more.Culvert Pipe: This type of pipe is not necessary a high quality or extremely durable structural pipe, but rather a construction pipe used for diverting water under and around driveways, water and sewer systems, drainage systems, and temporary bridges.
Application: In Structural Engineering and Construction Industry

Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS

LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL

Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Detail Specification of Structural Steel Pipe

API 5L/ASTM A106 GR.B, Structural Steel Pipe
公称通径 DN	外径OD(mm)	SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		壁厚WT	壁厚WT	壁厚WT
		(mm)	(mm)	(mm)
1/4''	13.7	2.24	3.02	/
3/8''	17.1	2.31	3.2	/
1/2''	21.3	2.77	3.73	4.78
3/4''	26.7	2.87	3.91	5.56
1''	33.4	3.38	4.55	6.35
1-1/4''	42.2	3.56	4.85	6.35
1-1/2''	48.3	3.68	5.08	7.14
2''	60.3	3.91	5.54	8.74
2-1/2''	73	5.16	7.01	9.53
3''	88.9	5.49	7.62	11.13
3-1/2''	101.6	5.74	8.08	/
4''	114.3	6.02	8.56	13.49
5''	141.3	6.55	9.53	15.88
6''	168.3	7.11	10.97	18.26
8''	219.1	8.18	12.7	23.01
10''	273	9.27	15.09	28.58
12''	323.8	10.31	17.48	33.32
14''	355.6	9.53	11.13	19.05
16''	406.4	9.53	12.7	21.44
18''	457	9.53	14.27	23.83
20''	508	9.53	15.09	26.19
24''	610	9.53	17.48	30.96

Technical data

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard

Grade

Chemical Composition

Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.15

≤0.25

335-457

≥205

≥24

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

490-665

≥325

≥21

Structural Steel Pipe Tolerance

Pipe types	Pipe Szie(mm)		Tolerances
Hot rolled	OD	All	±1% (min ±0.50mm)
Hot rolled	WT	All	+15%, -12.5%
Cold drawn	OD	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45mm
		>50	±1%
	WT	≤1	±0.15mm
		>1～3	+15% -10%
		>3	+12.5% -10%

Structural Steel Pipe End

Plain End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut)	Wall Thickness over 0.5 inch, including SCH XXS
Beveled End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings	Outside Diameter equal or less than 2''
Thread Protection	Outside Diameter over 4 inch

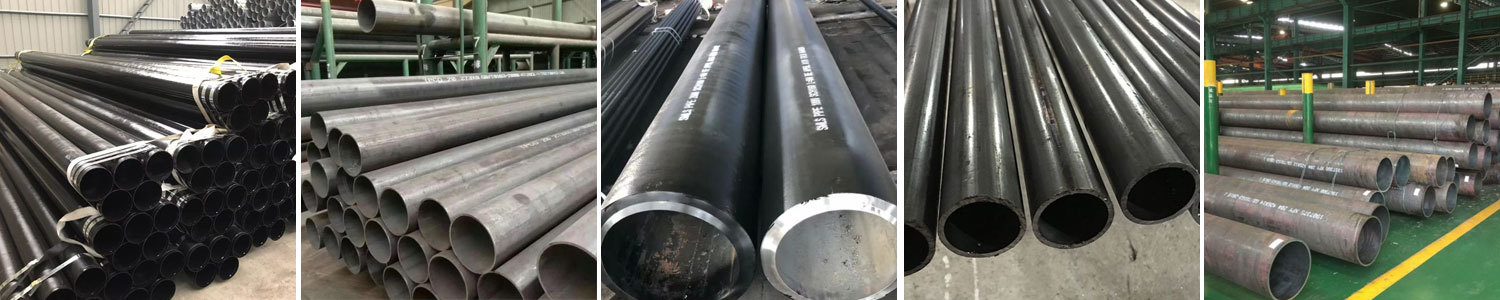

Factory Appearance

The company is headquartered in Qingdao and the factory covers an area of 20000 square meters. We have 8 advanced automatic cold forming production lines, 6 hot rolling production lines, more than 20 feeding machines, 2 environmentally friendly hot-dip galvanizing production lines, and 2 anaerobic annealing furnaces. We have invested in and constructed production lines for galvanized steel, color coated steel, seamless steel pipes, cold-rolled plates, stainless steel products, etc. in China, with an annual production capacity of 400000 tons;

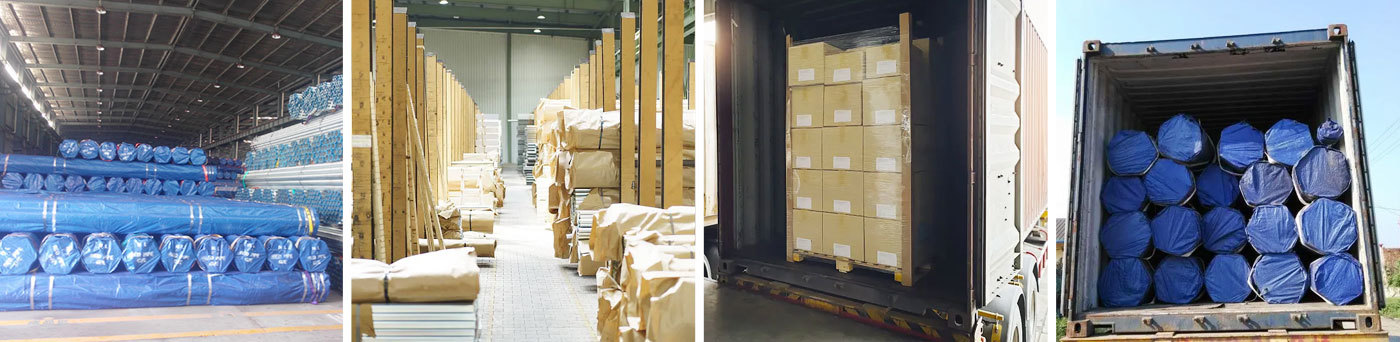

Packing And Shipping

We have established long-term friendly relationships with major domestic and foreign steel mills such as Baosteel, Tiangang, Pudong Iron and Steel, and provide customers with high-quality products and services conveniently and efficiently; in addition, our company has also set up its own warehouses at major domestic ports to ensure The goods are delivered to customers as soon as possible.

Customer communications

After more than ten years of efforts to cater to the growing needs of the international market, the company has begun to provide services to global users since 2016. As a one-stop supplier of steel and metal raw materials, we have a strong supply chain and a solid foundation.

ApplicationAreas

Based locally and serving the world, Weike Terui Steel actively promotes the high-end transformation of intelligent steel manufacturing with the concept of "quality, high-end, green, and ecological". We will continue to contribute wisdom and strength to the development of the steel industry by building a permanent benchmark enterprise in the industry!

FAQ

Q:How about the delivery time?

A: Within 15-35 days after we confirm you requirement.

Q:Where are you? Can I visit you?

A: Sure,welcome to you visit our factory at any time.

Q: What are the shipping ports?

A: You can choose other ports according to your needs.

Q: What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

Q: What product information do I need to provide?

A: You need to provide grade, width, thickness and the ton you need to buy.

Q: Can you send samples?

A: Of course, we can send samples to all over the world, our samples are free, but customers need to bear the courier cost.
